Description
Description

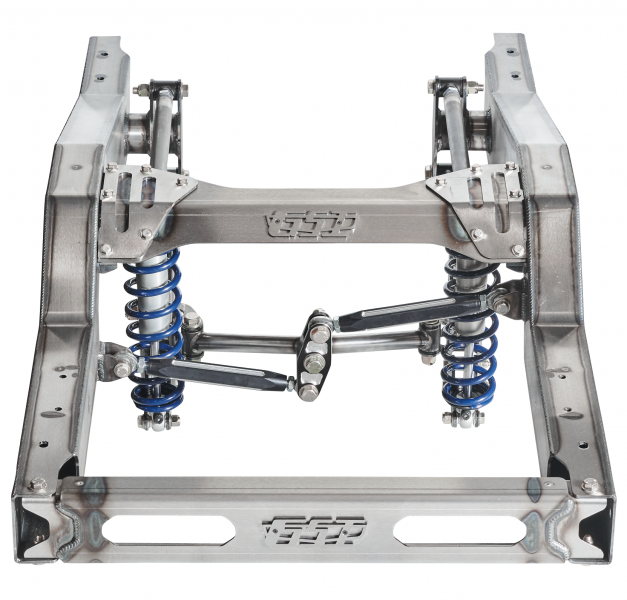

63-66 Coilover Backhalf - 120-5600-BH-CO
**This product will have a lead time; please call to verify expected wait**
This Coilover Backhalf kit was created for 1963-1966 Chevy & GMC trucks to replace the factory rear frame and suspension with a fully engineered 4-link coilover system. Perfect for those who want aggressive ride height with improved handling, without air ride complexity. With the updated coilover geometry, it delivers the adjustability and structural integrity needed for refined handling characteristics across both aesthetic and performance applications.
The rear suspension has been repositioned inboard to allow clearance for wide wheel setups up to 24” x 15”, while maintaining proper suspension travel and drivability. Adjustable coilover mounts provide a 4"-8" frame height range, allowing the chassis to be set low and dialed in for stance, handling, or competition use.
Key Features
-
Adjustable coilover mounting allows 4"-8" frame height
-
Rear suspension moved inboard for wide wheel clearance
-
Supports wheel widths up to 24" x 15"
-
Designed for improved handling and predictable suspension motion
Design & Manufacturing
-
OEM chassis laser-scanned for accurate fitment
-
Components laser-cut on Amada CNC laser equipment
-
CNC press brake formed for consistent fit
-
Machined components produced in-house for strict quality standards
- ASTM A1011
What’s Included
-
(1) Welded Rear Frame Rails
-
(1) Bridge Assembly
-
(2) Billet Watt’s Links (With Jam Nuts, Heim's & Misaligns)
-
(1) Watt's Link Center Pivot
-
(1) Watt's Link Mount Bar
-
(2) Frame Reinforcement Plates
-
(4) Adjustable 4-Link Bars
-
(8) Rod Ends (With Jam Nuts, Crush Sleeves, Bushings, & Zerk Fittings)
-
(2) 4-Link Axle Mounts (x1 Circle, x1 Oval)
-
(2) Ridetech Dual Adjustable Coilovers
-
(1) Hardware Bag & Instructions
Notes
-
ASSEMBLY REQUIRED and ships on pallet
-
This will convert a long bed to short bed
-
Designed for coilover applications only
-
Professional installation and welding recommended
-
Intended for custom rear frame replacement setups
