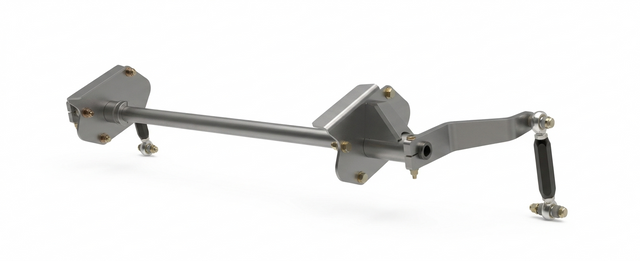

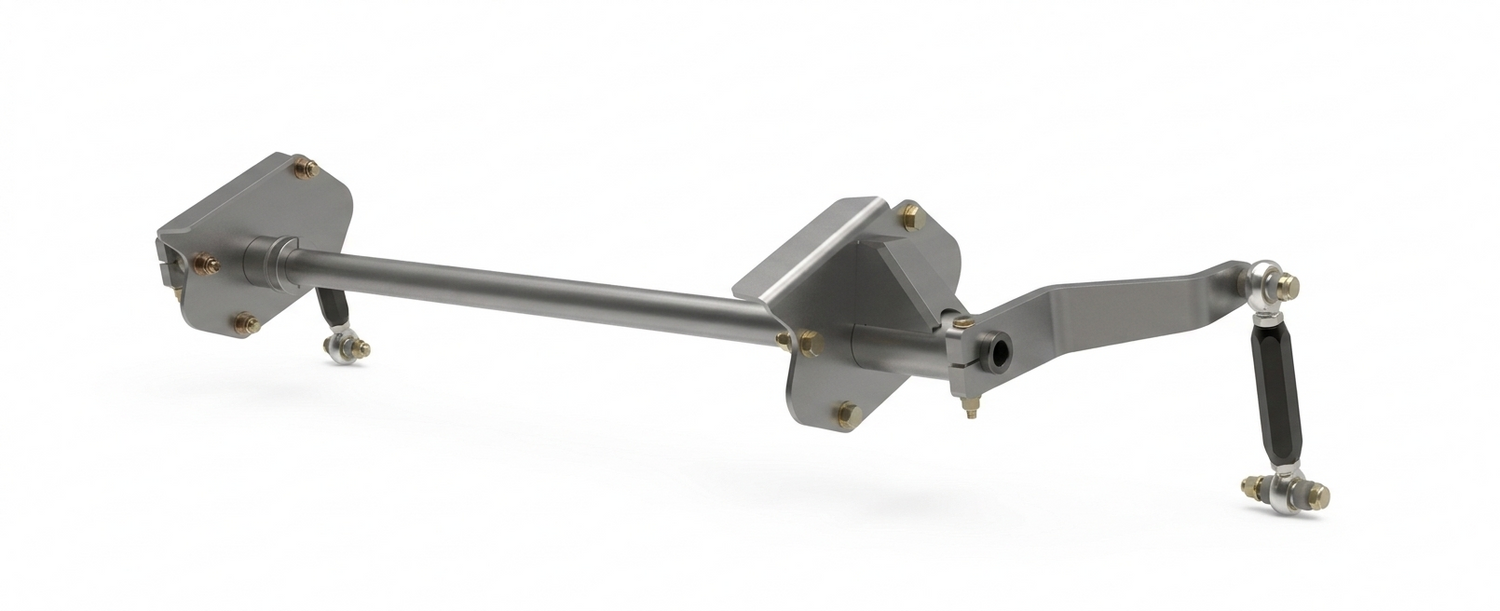

67-72 Front Sway Bar Kit

67-72 Front Sway Bar Kit - #130-6772-SB

Engineered to reduce body roll and deliver sharper front-end response, this front sway bar kit gives your 67 to 72 C10 precise roll control with real adjustability. Designed for stock or modified front suspension setups, it eliminates preload and suspension bind, especially on lowered trucks, while improving overall corner balance and handling consistency.

Built around a splined sway bar with machined billet components and high-strength steel rod ends, this system allows full suspension travel without binding while increasing rigidity where it matters most.

What’s Upgraded

• Preload-adjustable end links for precise sway bar setup

• Steel rod ends for increased strength and reduced deflection

• Higher articulation range to prevent bind on lowered applications

• Eliminates sway bar preload for balanced cornering

• Sharper turn-in response & improved stability under load

Key Features

• 33” 48-spline front sway bar

• Improves cornering stability and steering response

• For street and performance builds

• Laser-cut and broached steel sway bar arms

• Fabricated frame mount brackets

• Billet end links with black anodized finish

Fitment

• 1967-1972 Chevy & GMC C10 Trucks

• Designed for stock or modified front suspensions

What’s Included

• (1) 33” 48 Spline Sway Bar

• (2) Sway Bar Arms

• (2) Billet Sway Bar End Links (Black Anodized)

• (8) Stainless Steel Misalignment Spacers

• (2) 1/2"-20 Left Hand Heim's Joints with Jam Nuts

• (2) 1/2"-20 Right Hand Heim's Joints with Jam Nuts

• (4) Nylon Sway Bar Bushings

• (2) Retaining Rings

• (2) Sway Bar Bolt-On Brackets

• (1) Hardware Bag & Instructions

Notes

• 100% Bolt-on to the frame with GSI Front Kit

• Works Without GSI Front Kit, includes weld-on tabs for LCA
