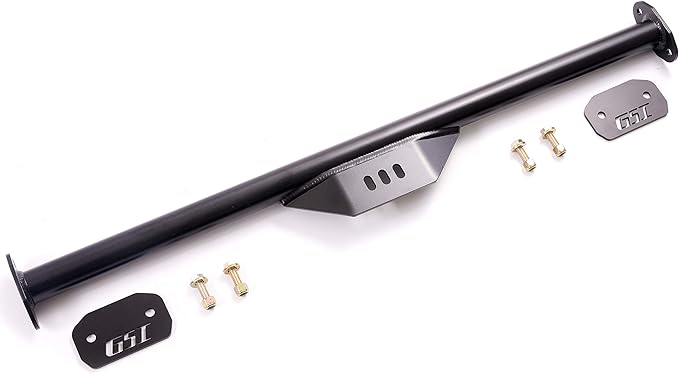

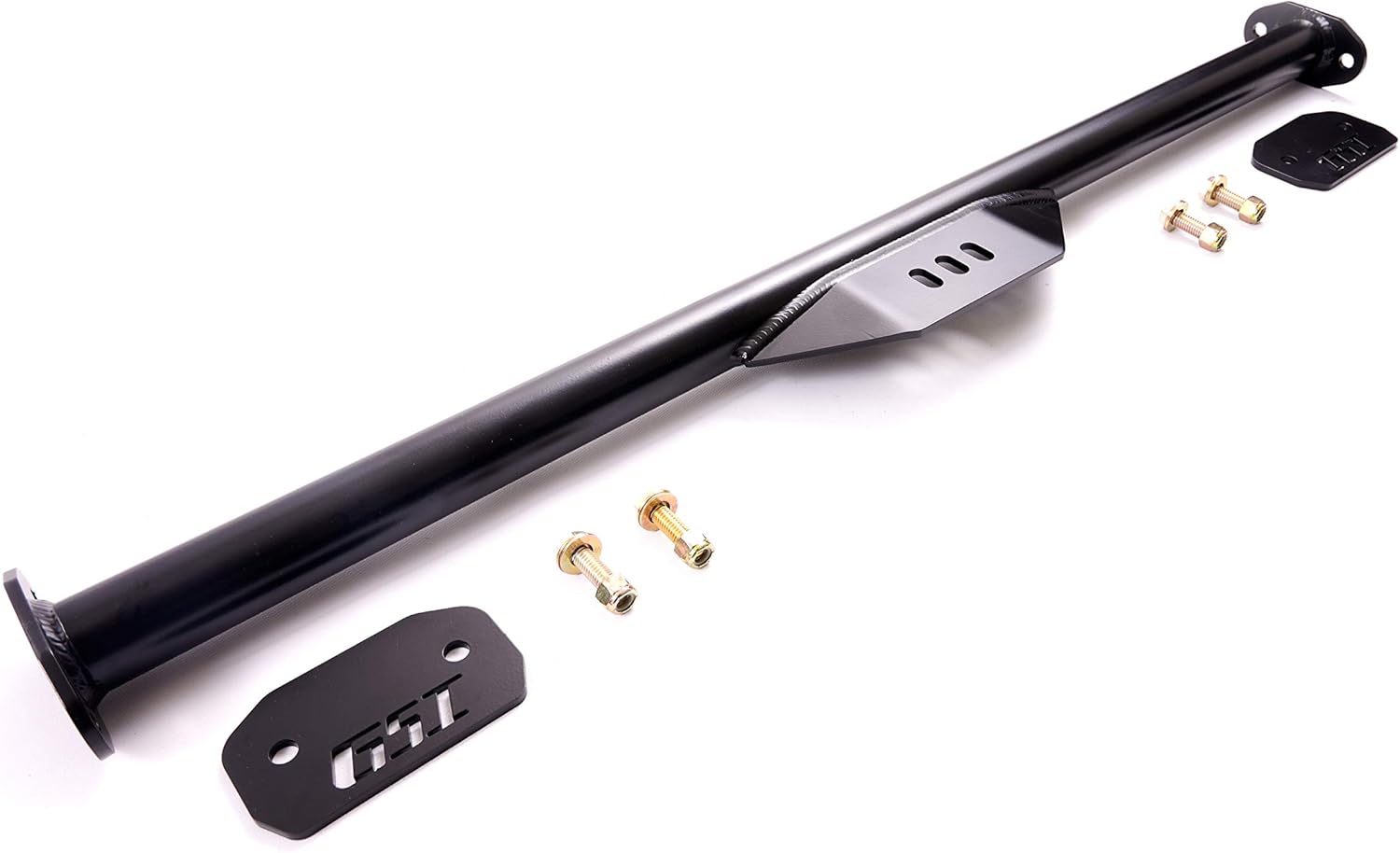

63-87 Transmission Crossmember

63-87 Transmission Crossmember - #120-5117

This universal transmission crossmember is designed to fit 1963-1987 Chevy and GMC trucks and provides flexibility when installing or adapting different transmissions. It is the same crossmember included in our front suspension kit. The universal design allows you to fine-tune drivetrain positioning and set your pinion angle to your desired specification.

Key Features

• Allows adjustment of transmission height and pinion angle

• Can be flipped upside down for lower transmission positioning

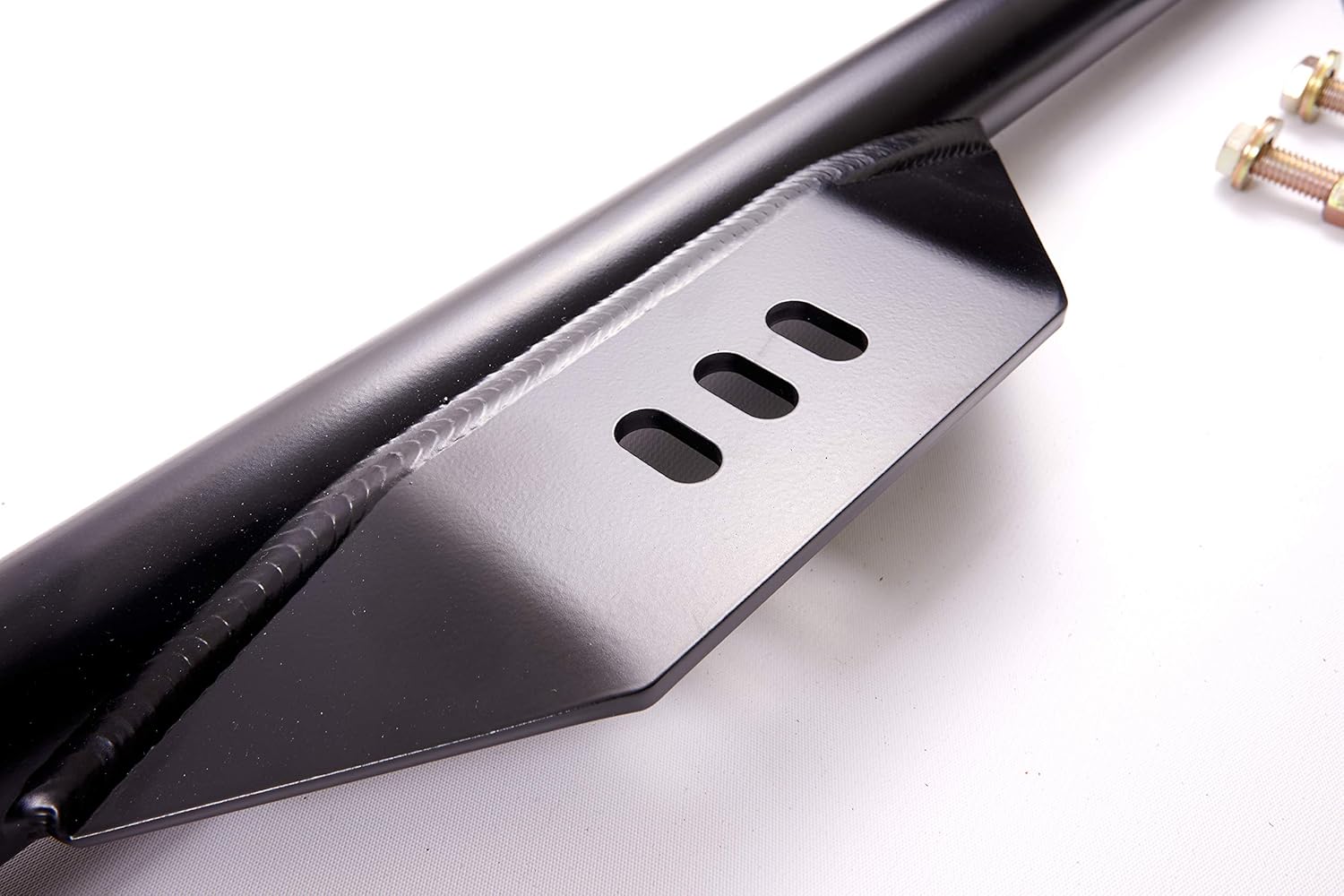

• Strong, rigid construction

• Finished in black powder coat for durability & corrosion resistance

Fitment

• 1963-1987 Chevy & GMC Trucks

• Compatible with a wide range of transmission types

What’s Included

• (1) Transmission Crossmember (Black Powder Coated)

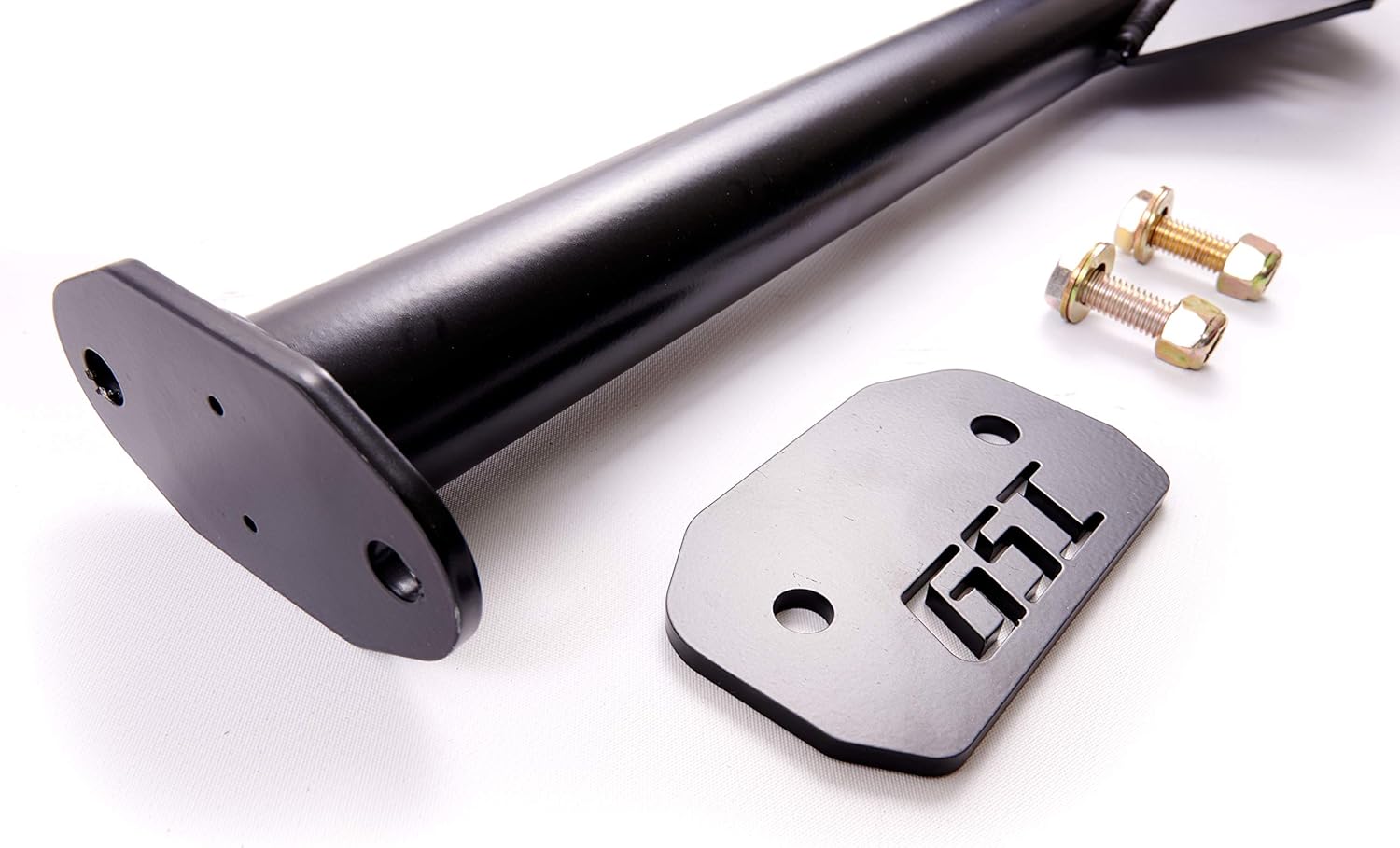

• (2) Logo Shim Mounts (Black Powder Coated)


• (4) 3/8 x 1.25 Bolts

• (8) 3/8 Flat Washers


• (4) 3/8 Nylock Nuts
