63-87 Chevy & GMC C10 Front Lower Bag Cups

63-87 C10 Front Lower Bag Cups (Pair) - #125-2100

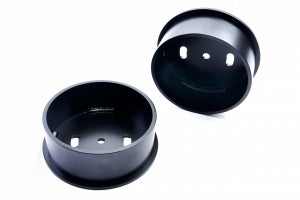

These front air bag cups provide a simple, affordable, and proven solution for converting factory front suspension to air ride using stock lower control arms. Designed to sit in the original coil spring pocket, they allow a D2500 or D2600 air bag to mount securely in place of the factory coil spring.

Each cup drops directly into the lower control arm spring pocket and is retained by the vehicle’s weight, just like a traditional spring or air bag. No welding or bolting is required, making this an ideal option for clean installs and budget-friendly air ride conversions.

Key Features & Benefits

• Designed for front lower control arm air bag mounting

• Replaces factory coil spring location

• Supports D2500 / D2600 air bags

• No welding or bolting required

• Sold as a pair

Design & Construction

• Manufactured from 5.5" OD x .188 wall DOM tubing

• 3/16" thick steel top plate welded to each cup

• 2" overall height for proper air bag positioning

• Finished in semi-gloss black powder coat for durability and corrosion resistance


Key Terms:

• OD = Outer Diameter

• DOM = Drawn Over Mandrel steel tubing

Fitment

• 63-87 C10, C20, C30 Truck or Blazer with factory coil spring lower control arms

Installation Notes

• Cups sit in the factory lower control arm spring pocket

• Air bag mounts directly on top of the cup

• Retained by suspension load and vehicle weight


• Professional installation recommended
