73-87 Axle Flip Kit

73-87 Axle Flip Kit - #130-4001

This bolt-on rear axle flip kit is designed for 1973-1987 Chevy & GMC C10 trucks equipped with the factory 3 inch rear axle tube diameter. By relocating the axle above the leaf springs, this kit provides an approximate 5-inch rear drop, lowering the truck’s stance while maintaining proper suspension geometry and street-friendly drivability.

Fitment is engineered specifically around OEM-style GM rear axle housings used in 73-87 C10 trucks, ensuring proper seating, clamping force, and alignment on factory leaf-spring rear suspensions. No cutting, welding, or modification to the axle housing is required for installation.

All structural components are fabricated from 1/4-inch thick steel plate for strength and long-term durability, then finished in a black powder coat to resist corrosion. The kit includes yellow zinc–plated hardware for a reliable, corrosion-resistant bolt-on installation.

Features & Benefits

• Lowers rear ride height 5.0"

• Installs between axle housing and leaf springs

• New extended U-bolts replace factory hardware


• One-person, bolt-on installation

• No cutting or welding required


• Hard black anodized for durability

Installation Overview

• U-Bolts – Replaces factory U-bolts and secure the assembly

• Leaf Springs – Remain in their stock position

• Axle Housing – Relocated above the leaf springs

• Axle Spring Plates / Locators – Sit between the axle & leaf springs to maintain alignment

• Washers & High Collar Nuts – Secure all components

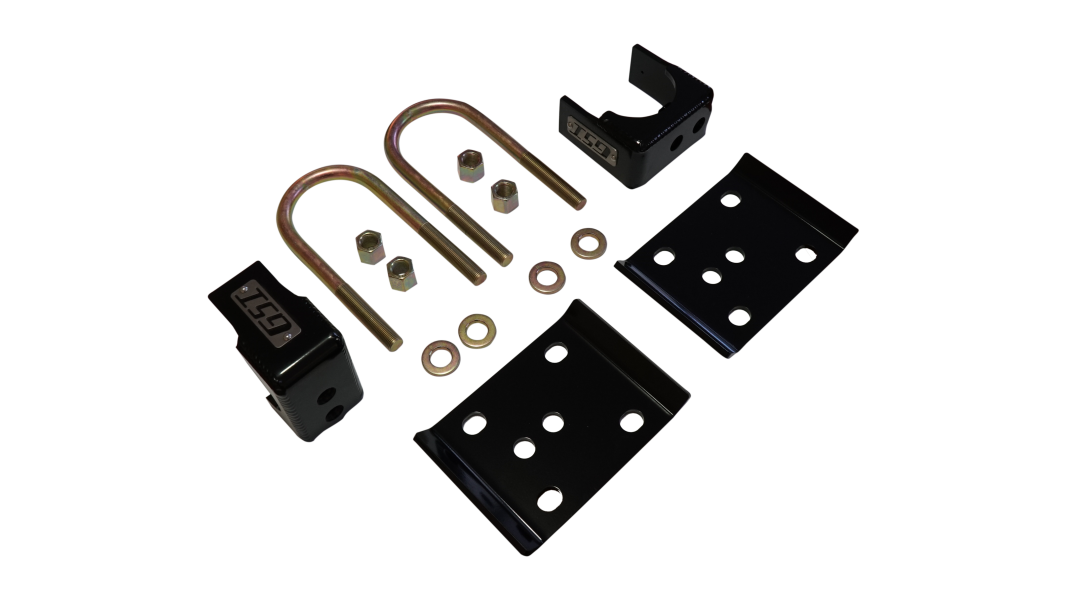

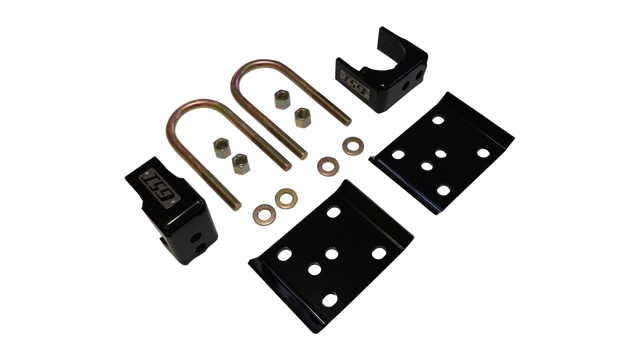

Kit Includes

• (2) Axle Locators (With GSI Stainless Steel Logos)

• (2) Axle Spring Plates

• (4) 5/8" U-Bolts (Zinc Plated)

• (8) 5/8" High Collar Nuts

• (8) 5/8" Washers

Notes

• Bolt-on installation, minimal modifications required
