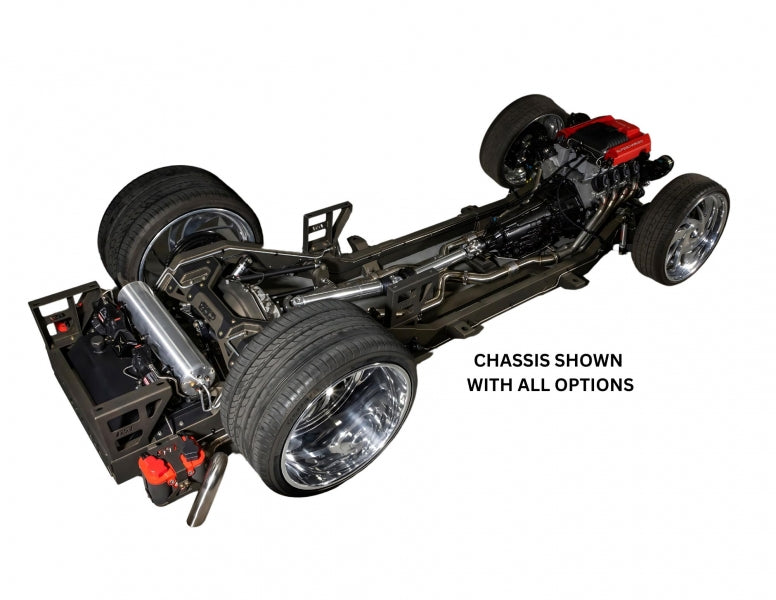

67-72 C10 Air Ride Chassis

67-72 C10 Air Ride Chassis - #CHASSIS6772-AIR

The GSI '67-'72 C10 Air Ride Chassis is designed for builders who want their truck fully slammed, riding on modern suspension geometry. This chassis is meant to lay frame while delivering modern handling, increased structural strength, and a heavily refined ride quality.

Hand-fabricated and fully welded by professional fabricators, each chassis is constructed of ASTM A1011 hot-rolled steel, using MIG and TIG welding and precision-manufactured components for uncompromising strength and consistency.

Designed to Lay Frame

This chassis was engineered from the ground up using laser-scanned OEM frames to ensure perfect fitment and true frame laying capability. Optimized suspension geometry minimizes camber change throughout suspension travel, eliminates bump steer, and keeps alignment stable at ride height and aired out.

Integrated features such as GSI Lower Control Arm Alignment Cams and the GSI Tie Rod Adapter Kit make dialing in alignment simple while maintaining proper steering geometry, even when the truck is laid out.

The rear suspension and notch system support extreme lowering and accommodate wide wheel setups up to 24” x 15”, making this chassis ideal for high-end street trucks, show builds, and performance-focused rides.

A Serious Foundation

Primary chassis and suspension systems arrive installed, with select components and some optional add-ons shipped boxed separately on the pallet as needed.  The foundation is now just about ready to accept a body, drivetrain, wheels, and hard lines with no guesswork.

Precision Manufacturing

• Laser-scanned OEM chassis data

• CNC laser-cut components

• CNC press brake forming

• Full in-house CNC machine shop

• Built for proper fit from start to finish

What’s Included

• Front D2600 Air Bags

• Rear Firestone F9000 Air Bags

• Boxed Sheet Metal Upper & Lower Control Arms

• Upper & Lower Ball Joints

• GSI Tie Rod Adapter Kit

• Chassis Stiffener

• Axle Housing

• Billet Watt’s Link

• Rear Four-Link Suspension

• Rear Frame Notch & Bridge

• Frame Rails

• Shocks


• Carrier Bearing Mount

• Mustang II Power Steering Rack (Premium Flaming River rack upgrade available)

• Small Block Engine Mounts (LS engine mounts sold separately)

Optional Add-Ons Available:

• Axle Third Member

• Axle Package (31 or 35 Spline)

• Aftermarket Brake Kits (Wilwood or CPP)

• Bed Raise Kit

• Fuel Tank (EFI/Non-EFI)

• Front Sway Bar

• Rear Sway Bar

• Rack & Pinion Upgrade (Flaming River)

• Motor Mounts (SBC/BBC/LS/LT4/LT5)


• Wheels & Tire Packages


Click to Start Chassis Quote

Shipping

• Ships as freight on a reinforced & wrapped pallet

• Quote required
